ID # 13882942

Outback STX

Call for Price
Overview

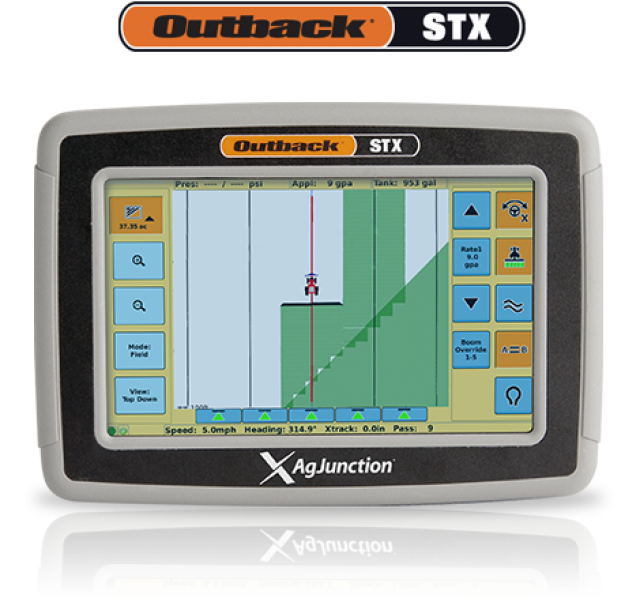

Outback STX

The Outback STX™ Guidance System is the culmination of combining full RTK capability in an autosteer ready, value based terminal. The Outback STX incorporates some of the industry’s best innovations in a system priced below competitive terminals in this segment of the market.

The Outback STX is compatible with the full line of field proven Outback autosteer systems. This includes eDriveX™ with the eTurns™ automated turn solution.

The STX is RTK capable when used in conjunction with a MAX rover and Outback RTK base stations. If the cost of an RTK capable system has been a hurdle in the past, the Outback STX is your RTK solution.

Specifications
Model
STX
Sale Type
New
Manufacturer
Outback
CAN
2x
USB
1x 2.0 Host
Ethernet
1x through cabling
Ground Speed Interface
4-pin circular
Data I/O Protocol
NMEA 0183, NMEA 2000
Processor
ARM Cortex-A8 @ 800MHz
Storage
8MB NOR, 2GB NAND, 512MB DDR3 RAM
Operating System
Linux
Display Type
7'' LCD TFT WVGA (800x480 res)
Weight
1.14 kg (2.5 lbs)
Screen Size
154.4mm x 91.44mm (6.0'' x 3.6'')
Case
Aluminum
