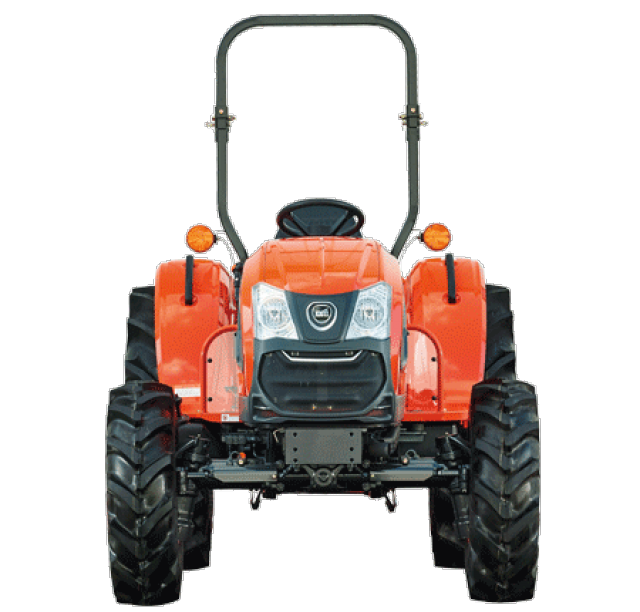

Kioti DK5510
Call for Price
Overview
Specifications
Documents
| ||
|
Features | ||
|
CRDI Diesel Engine with Daedong ECO Technology
The new Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the DK10 Series offers the operator a quiet work environment with powerful performance. | ||
Projection and Working Lamp
With the new projection head and working lamp, the operator will experience safer and easier operation after the sun goes down. | ||
Deluxe Suspension Seat
Ergonomically designed, fully adjustable suspension seat allows the operator to ride in comfort no matter what the task may be. A pocket on the back of the seat allows easy access for the operator's manual. | ||
Fender Grip
The fender grip, available on both sides, makes it easier get in and out of the tractor. | ||
Large Capacity Hydraulic Pump
The large capacity hydraulic pump (14.5 gpm) combined with high lift capacity (2,716 lbs.) increases productivity. | ||
PTO Cruise
With the electronically controlled engine, the PTO rpm can be maintained at the set value even with variable load conditions. | ||
Tail Lamp
The stylish tail lights improve operator safety by increasing visibility of the operator. | ||
High Ground Clearance
The maximum ground clearance of 15.2 in. (387 mm) makes usage on rocky or uneven terrain simpler. | ||
Center Maker
The center marker on the hood assists with maintaining straight rows. | ||
Power and Tilt Steering
The standard power steering minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of a lever, allowing easy adjustment to fit the operator needs. |
Model
DK5510
Year
2020
Sale Type
New
Manufacturer
Kioti
Engine Size
1,826 cc
Width
62.8 in. (1,596 mm)
Fuel Type
Diesel
Wheelbase
71.3 in. (1,810 mm)
Rated Speed
2,600 rpm
Engine Model
3HT-TM4B
Ground Clearance
15.2 in. (387 mm)
No Of Cylinders
3
Transmission Type
Manual
Fuel Tank Capacity
11.9 gal. (45 L)
Height From Top Of ROPS
92 in. (2,338 mm)
Length W/ 3-point Hitch
124.3 in. (3,157 mm)
Documents
Model
DK5510
Year
2020
Sale Type
New
Manufacturer
Kioti
Quantity
0
Engine Size
1,826 cc
Width
62.8 in. (1,596 mm)
Fuel Type
Diesel
Wheelbase
71.3 in. (1,810 mm)
